描述

適合于自動磨削 pkd-焊接刀具、圓柱刀具、盤形刀具等等

erosion machine for diamond tipped metalworking tools (cnc-controlled) made by vollmer, model qwd 750 pro rebuilding 再制造2017

specifications 規格:

milling cutters outside dia. up to 最大銑刀外徑達到200 mm, cutting edge length up to 最大銑刀切削邊長度達200 mm, shaft tools diameter 桿狀刀具直徑10 - 100 mm, cutting length max.桿狀刀具最大切削長度 500 mm,

discoid tools outside dia. up to 盤狀刀具外徑達到200 mm, max. workpiece weight 最大工件重量20 kg,

angential clearance angle to 6°, radial clearance angle -10° to +6°, radial【敏感詞】axial clearance angle 30°,

chamfering up to 45°, spiral cutting to 45°,

traversing range x-axis 軸行程長度220 mm, traversing range y-axis 軸行程長度280 mm, traversing range w-axis 軸行程長度150 mm, e-axis swivel range 回轉行程120°,

spindle speed 磨削軸速度80 - 2000 rpm, workpiece holder 工件夾持標準 iso 50,

dimensions machine 機床大小 w 寬 x d 深 x h 高 = 2235 x 2630 x 2270 mm, weight 重量大約 ca. 3500 kg,

connected load 裝載負荷大約 ca. 3.4 kw (400 volts / 50 hz), colour 顏色 grey ral 9003 / 7011.

accessories 附件:

total enclosure 全包圍,

cooling system for dielectric fluid 電解液冷卻系統, tailstock 托架, a-axis iso50工件軸錐度 probe 探針,

automatic central lubrication 自動中央潤滑,

sus gmbh tel: +49 (0) 4471 9292-22 fax: +49 (0) 4471 9292-26

emstekere straße 127, d-49661 cloppenburg, germany www.sus.de

，7/8

來自德國的二手刀具磨床專家為您提供一流品質的二手設備

machine lamp 機床燈, mist extractor 油霧分離器

stepless speed control 無極速度控制,

automatic fire extinguishing system 自動滅火系統

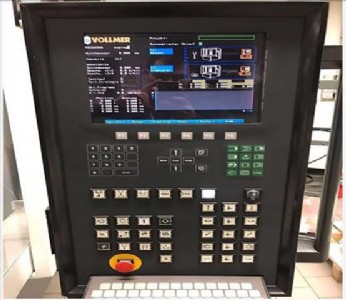

1 pc with vollmer path management system software.孚爾默系統軟件電腦 software exprog („expert mode“ for metal working)專家版軟件
